Models	XH-G550 / XH-G1200
Working area	X550Y800Z110mm / X1200Y800Z110mm
Maximum load	XY: 30KG; Z: 8KG
Moving speed	X/Y: 1000mm/s; Z: ≤500mm/s
Screen showing	PC
Analytical accuracy	±0.01mm
Positioning mode	CCD visual positioning system
Automatic width adjustment range of conveying line	100–450mm Automatic width adjustment
Transmission mode	Anti static belt
Incoming induction	Optical fiber / photoelectric
Overall structure	Square steel / aluminum profile structure
Motor System	Servo motor / linear motor
Transmission module	Linear module / ball screw
Dispensing method	High frequency piezoelectric valve / screw
Motion interpolation function	Any route in 3D stereoscopic space is possible
Height measurement function	Laser displacement device
Automatic weighing function	Accuracy ± 0.01mg
Automatic cleaning function	are provided
Edit mode	PC
Operating temperature	10–40°C
Operating humidity	20–90% no condensation
External interface	IO+USB
Power / energy consumption	AC220V 50–60Hz 2500W
Overall dimension	Approximately L1200W1500H1660mm / W1950L1600H1660 (size for reference only, subject to actual product)
Weight	About 1000kg / 2000kg

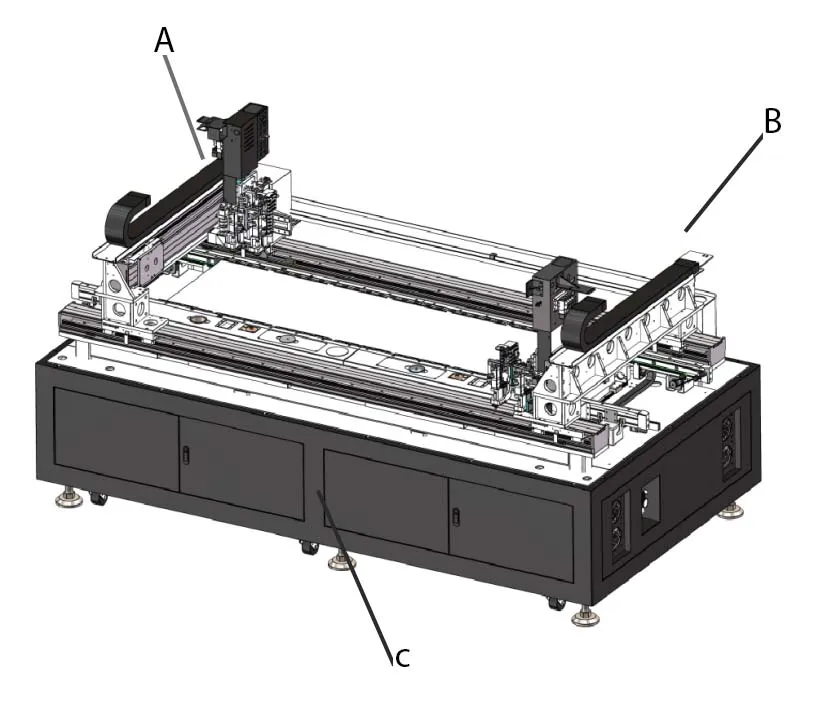

Dual Valves Asynchronous Function

A.The auxiliary valve supports asynchronous automatic calibration and adjustment. The Y-axis (valve width adjustment) allows spacing from 80 to 180 mm, the X-axis is adjustable by ±10 mm, and the Z-axis by ±50 mm.

B.CCD visual positioning+light source

C.Equipped with dual piezoelectric jet valves, the system is compatible with various adhesive packaging types.

This automatic glue dispensing machine features an upgraded dual bent-needle vision auto-alignment system based on the original equipment. It performs real-time needle angle correction, significantly reducing needle collision issues and greatly minimizing downtime and programming time during line changes.

High Speed Automatic Glue Dispensing Machine

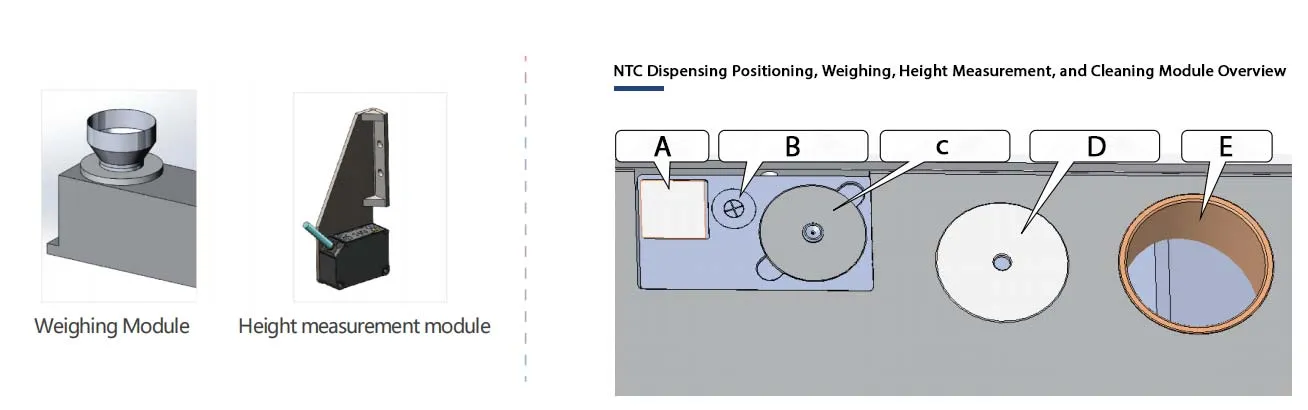

A:Point Template
Can easily confirm the relative position between the needle and the camera, i.e. camera needle calibration.

B:Height Detection and Needle Alignment Device
It is convenient to calibrate the relative positions of the needle in the XYZ directions. Height measurement module: equipped with laser height measurement technology to calculate dispensing height.

C:Clean Up Needle Waste Glue
Set the timing for cleaning the needle, automatically clean the needle residue without the need for manual wiping and cleaning.

D:Batching Out Unit
After replacing the glue, it is necessary to reduce bubbles by draining the glue, making this device convenient for receiving and cleaning.

E:Weighing Scale
This automatic glue dispensing machine is equipped with a weighing scale,It is convenient to confirm the actual size of the glue output, and by selecting the weighing timing in automatic operation, abnormalities such as lack of glue, insufficient glue, and needle blockage can be detected in a timely manner.
