4 Axis 2 Part Epoxy Dispensing Equipment

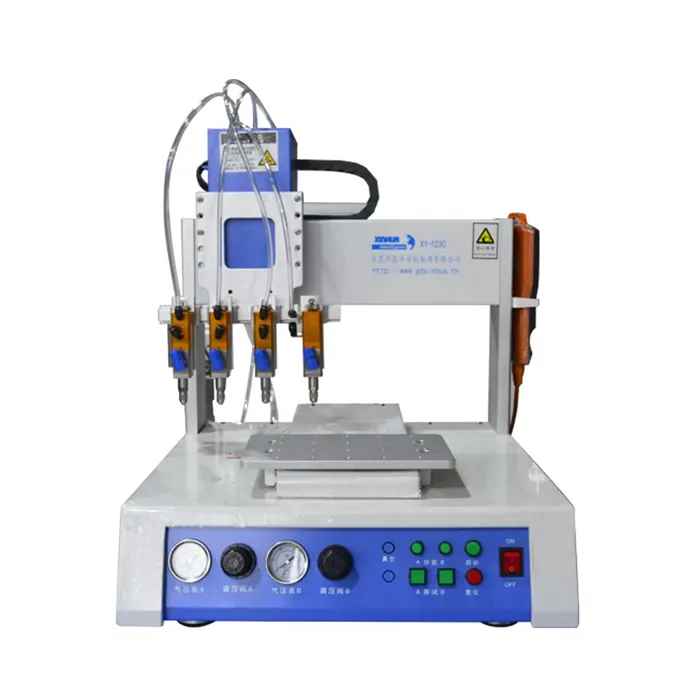

4 Axis 2 Part Epoxy Dispensing Equipment with Four Heads
The dispensing equipment equipped with four synchronized dispensing heads, it delivers exceptional speed and consistency for dual-component materials such as epoxy, PU, and silicone. With 4-axis motion control, it supports complex multi-angle operations for high-volume production lines.
Two-component mixing system supports various A/B ratio materials such as epoxy, PU, and silicone.
Programmable control system with user-friendly interface for easy path editing and real-time adjustment.
Precision Control: ±0.03mm repeatability ensures perfect glue placement.

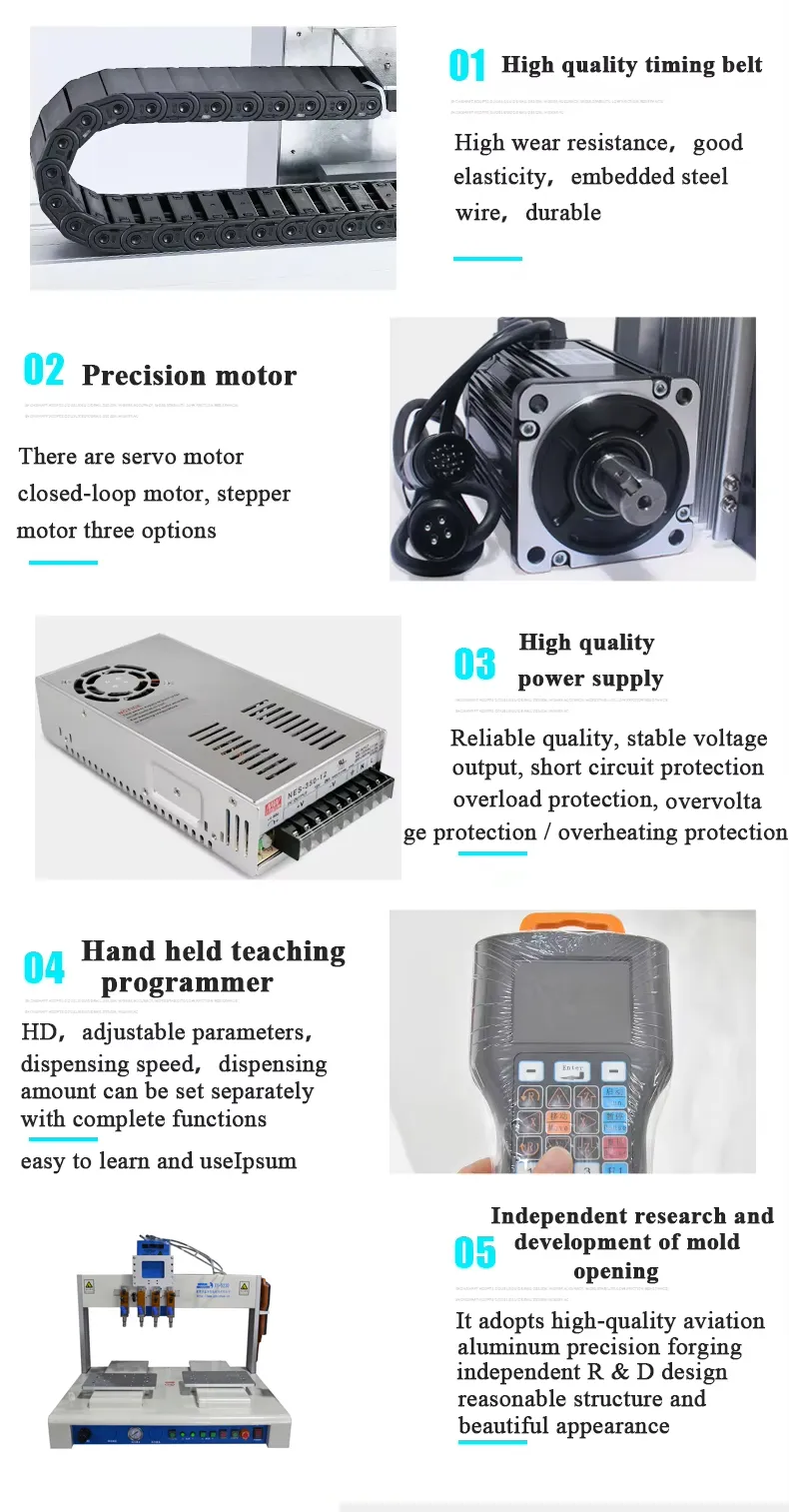

High-speed brushless servo motors ensure smooth, accurate movement with repeatable precision.
Automatic cleaning and anti-drip function to maintain consistent output and reduce waste.
Aluminum alloy frame for excellent corrosion resistance and structural rigidity.
Key Features
4-axis motion system and four dispensing heads for simultaneous multi-point operations, boosting production efficiency.Two-component mixing system supports various A/B ratio materials such as epoxy, PU, and silicone.
Programmable control system with user-friendly interface for easy path editing and real-time adjustment.
Precision Control: ±0.03mm repeatability ensures perfect glue placement.
High-speed brushless servo motors ensure smooth, accurate movement with repeatable precision.
Automatic cleaning and anti-drip function to maintain consistent output and reduce waste.
Aluminum alloy frame for excellent corrosion resistance and structural rigidity.
| Dispensing Range X/Y/Z (mm) | 400/400/100 |
| Programming Mode | Teaching programming or graphic import |

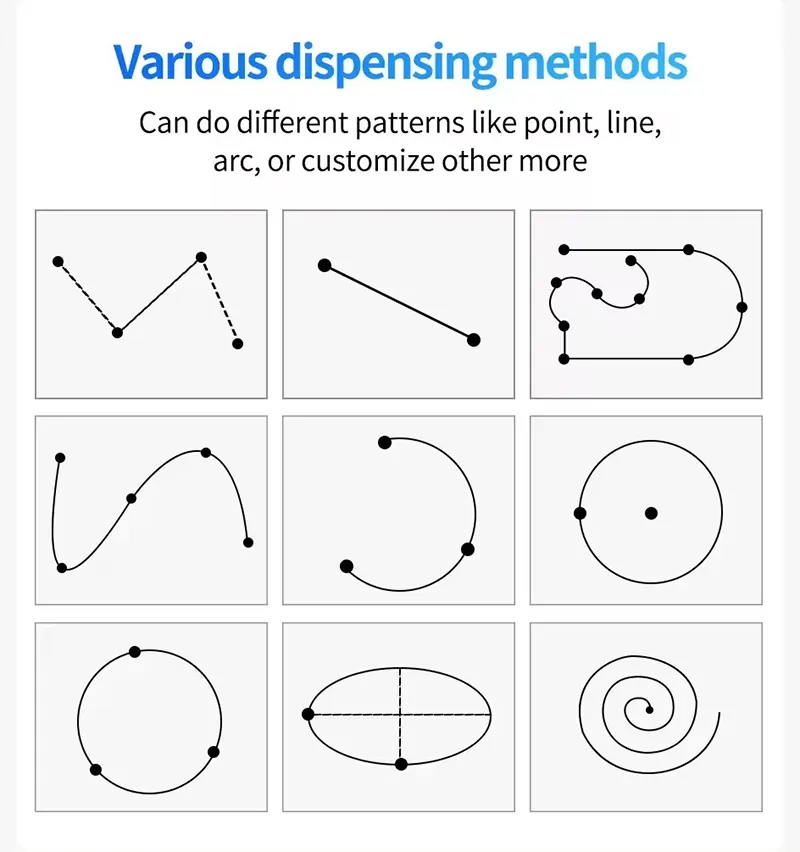

| Movable Graphic Trajectory | Points, lines, arcs, full circles, curves, polylines, helices, ellipses |

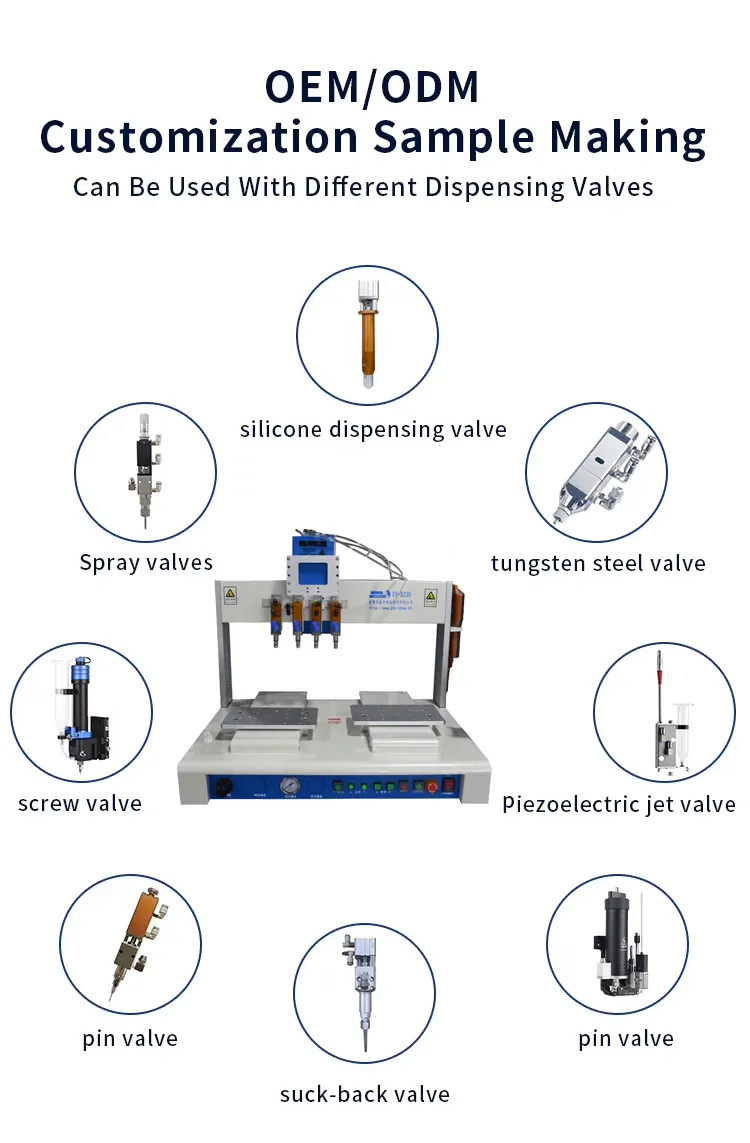

| Dispensing Valve | Shut-Off Valve |
| Dispensing Barrel | 50ml/250ml/490ml |
| Equipment Repeatability Accuracy | ±0.02mm |
| Minimum Dispensing Volume | 0.01ml |
| Dispensing Frequency | 5 times/S |
| Dispensing Accuracy | Error 2% |
| Maximum Load | 10KG |
| Moving Speed (mm/sec) | 0—500 |
| Control Mode | Motion control card + handheld box |
| Number of Program Records | Group 999 |
| Display Mode | LCD Teaching Box |
| Photoelectric Switch | Omron |
| Transmission Mode | Elatech Synchronous belt |
| Input Power Supply | Voltage AC110V~220V |
| External Control Interface | RS232 |
| Equipment Material | Aluminum profile module structure |
FAQs
-

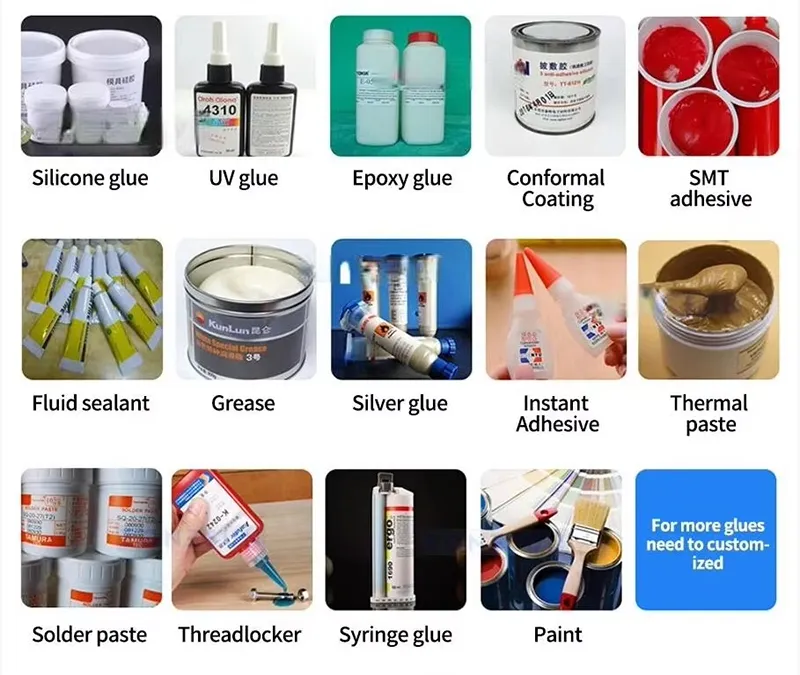

What materials can this machine dispense?It supports two-component epoxy, PU, silicone, and UV-curable adhesives.
-
How accurate is the dispensing?The machine achieves a repeatability of ±0.03mm.
-
Can I customize the dispensing area size?Yes, the working area can be customized based on your production needs.
-
Is the mixing ratio adjustable?Yes, the A/B material ratio is adjustable from 1:1 to 10:1.
-
How is the training provided?We offer online video training, manuals, and optional on-site training.
