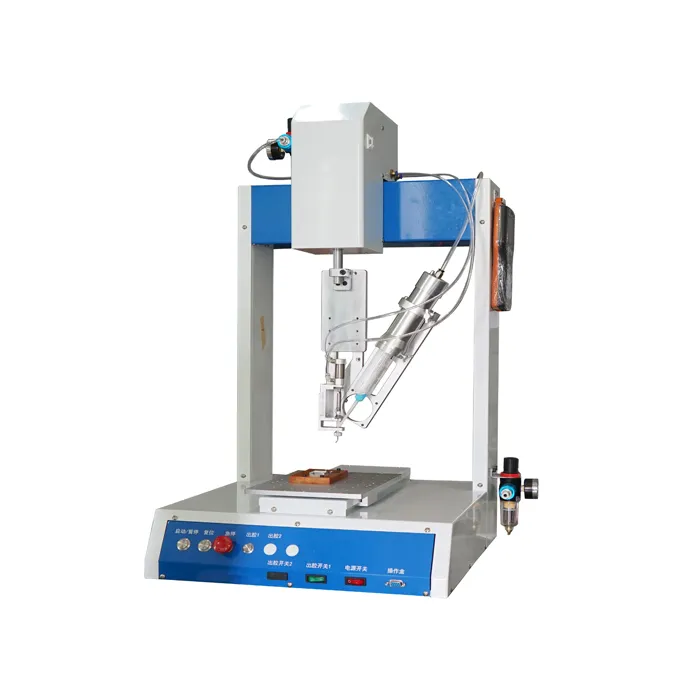

Four Axis Industrial Glue Dispenser

This Four-Axis Industrial Glue Dispenser is equipped with a three-axis dispensing machine as the main unit, with the R-axis mounted on the Z-axis to achieve 0–360° rotation of the dispensing head for precise glue dispensing. It can be customized according to customer requirements.

Features:

1.The R axis can be rotated 360° to dispense glue for the product. The dispensing mouth follows the best direction/side, and the direction can be changed at will.
2.Flexible operation, can be configured with AB two-component glue or single component glue operation
3.Operation with handheld LCD panel teach box, which is easy to program and learn.
4.The industrial glue dispenser With functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
5.Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
6.The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
7.The glue outflow is quite stable, without leaking and dripping.
8.The four-axis industrial glue dispenser is suitable for hot glue,UV glue, AB glue, Epoxy (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, tin paste, cooling paste, anti-solder paste, transparent paint, screw fixation agent, etc.
