5-Axis Auto Glue Dispenser

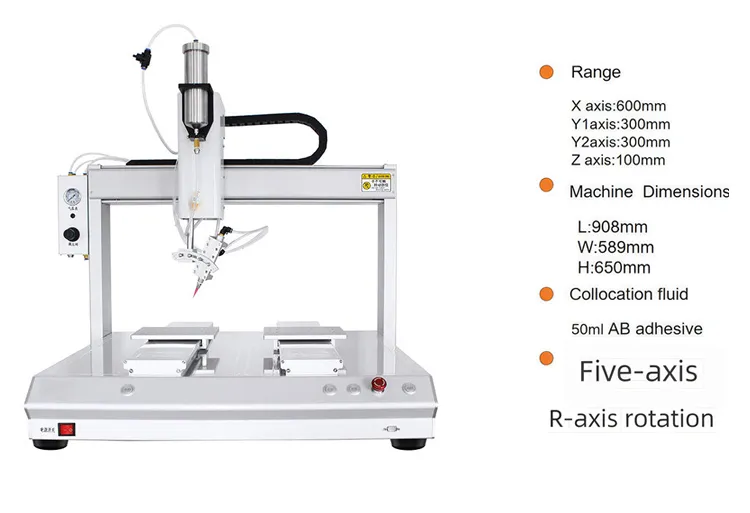

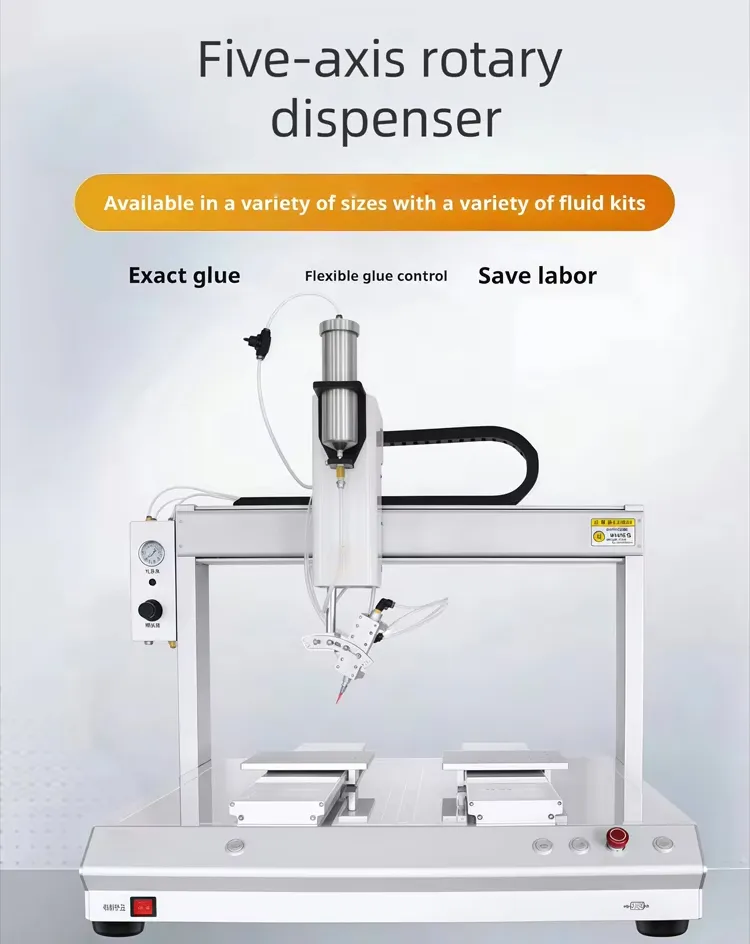

5-Axis Auto Glue Dispenser Machine with Double-station XH-D6331R

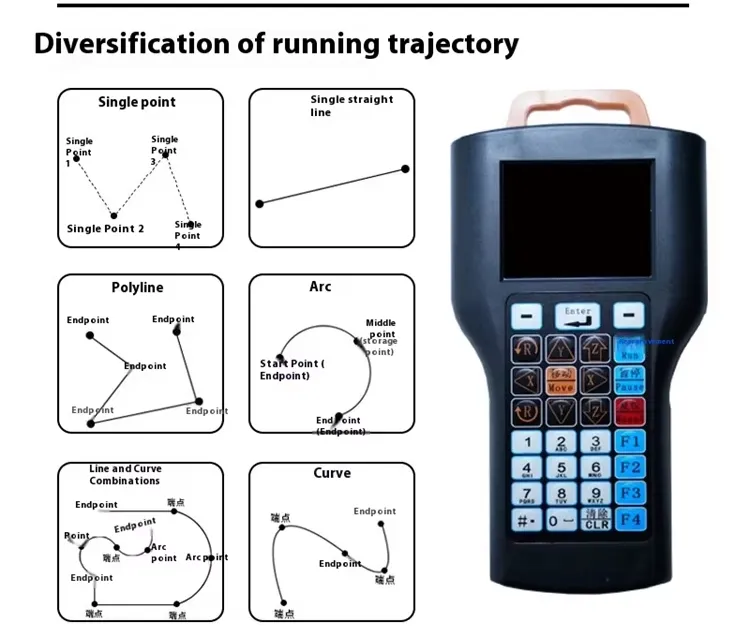

1. The 5 axis auto glue dispenser has the functions of drawing points, lines, arcs, circles, irregular curves, continuous tween input programs, etc., and can be three-dimensional dispensing;
2. Continuous dispensing function of irregular curves such as any point, line, surface, arc, etc.;
3. High-speed, low-noise brushless DC motor makes dispensing better;
4. The static eliminator can eliminate the static electricity within 100V:
5. The automatic compensation function of dispensing strength makes the operation more convenient;
6. XY regional array, translationalrotation operation function, reverse material tray, suitable for positioning of different work!
7. The auto glue dispenser machine support three-axis space true line interpolation, three-axis space arc interpolation, elliptical arc interpolation;
8. This glue dispenser machine support the import function of computer graphics, and can import DXF files.
2. Continuous dispensing function of irregular curves such as any point, line, surface, arc, etc.;
3. High-speed, low-noise brushless DC motor makes dispensing better;
4. The static eliminator can eliminate the static electricity within 100V:
5. The automatic compensation function of dispensing strength makes the operation more convenient;
6. XY regional array, translationalrotation operation function, reverse material tray, suitable for positioning of different work!
7. The auto glue dispenser machine support three-axis space true line interpolation, three-axis space arc interpolation, elliptical arc interpolation;
8. This glue dispenser machine support the import function of computer graphics, and can import DXF files.
| Item | Specification |
|---|---|
| Operating Range | X axis: 500mm / Y1 axis: 300mm / Y2 axis: 300mm / Z axis: 100mm |
| Machine Dimensions | L908mm × W589mm × H650mm |
| Machine Weight | 70Kg |
| Maximum Speed | 500mm/s |
| Control System | Core independent R&D control system |
| Repeat Accuracy | (Screw) ±0.02mm; (Belt) ±0.05mm |
| Drive Mode | Stepping/servo motor, synchronous belt or screw rod, linear guide |
| Program Storage | Stores up to 99 sets of processing data; single file up to 3MB (≈5,000 processing points) |
| Main Uses | Bonding, potting, coating, sealing, padding, dripping, linear/arc/circular gluing, etc. |
| Power Supply | AC220V 50Hz |
Note: more programming track can contact customer service
