4 Axis Benchtop Dispensing Robot

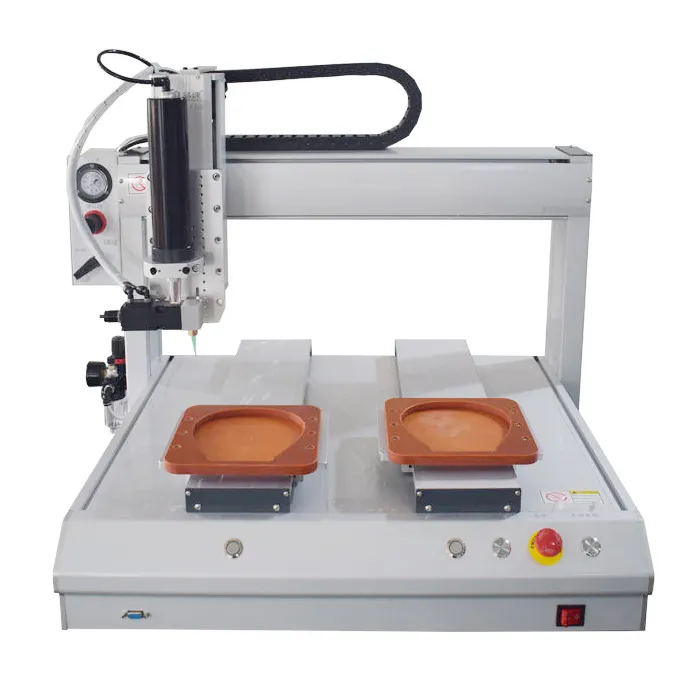

4 Axis Benchtop Dispensing Robot (Double Y Axis)

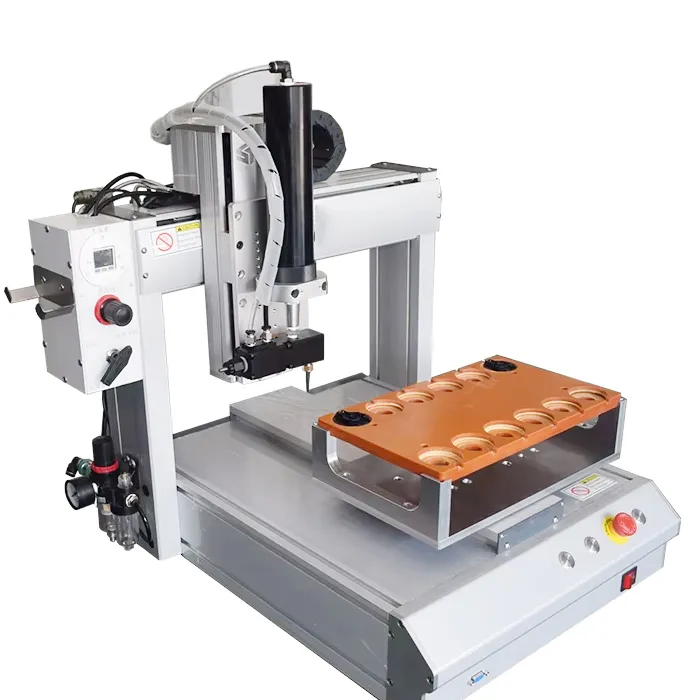

The 4 Axis Benchtop Dispensing Robot with aluminum body, providing stronger corrosion resistance, electrical conductivity, non-ferromagnetism, and thermal conductivity. Dispenses glue with high precision and the amount of glue can be controlled freely,one-touch operation buttons are set on the body to make operation easier and more convenient. Simple to learn and easy to operate.
Feature：
1. Small size footprint, easy to move;
2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;
3. Small noise, smooth running, repeatability ± 0.03mm;
4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;
5. The benchtop dispensing robot dispensing valve with suction function, fast stop dispensing, no leakage of glue drops, glue does not pull wire.
Feature：
1. Small size footprint, easy to move;
2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;
3. Small noise, smooth running, repeatability ± 0.03mm;
4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;
5. The benchtop dispensing robot dispensing valve with suction function, fast stop dispensing, no leakage of glue drops, glue does not pull wire.
| Model | XH-4300 | XH-5230 | XH-6120 |
|---|---|---|---|
| Working range (mm) | X400*Y1/300*Y2/300*Z120 | X500*Y1/300*Y2/300*Z120 | X600*Y1/400*Y2/400*Z120 |
| Maximum load | X/Y: 10kg; Z: 5KG | ||
| Moving speed | X/Y: ≤ 500mm/s; Z: ≤ 200mm/s | ||
| Motion accuracy | ±0.03mm | ||
| Motor system | Stepper motor + linear guide rail drive | ||
| Dispensing method | Syringe / high precision dispensing valve outlet | ||
| Control system | Motion control card | ||
| Panel control | Position adjustment, micro advance, program selection | ||
| Control mode | Point to point, line to arc compensation | ||
| Programming mode | Hand held teaching pendant | ||
| Delimitable graph | Line, garden, arc; Continuous scribing; Drop, glue | ||
| Motion interpolation function | Any 3D route | ||
| Input power | AC220V 50-60Hz | ||
| Operating temperature | 10-40℃ | ||
| Operating humidity | 20-90% no condensation | ||
| Dimension W*D*H (mm) | 560*500*590 | 705*590*600 | 790*630*600 |
| Weight | around 60kg | around 70kg | around 80kg |
FAQs
-
What is the advantage of the double Y-axis design?It allows two products to be dispensed simultaneously, effectively doubling output efficiency.
-
Can it handle different types of adhesives?Yes, it supports epoxy, silicone, UV glue, and more.
-
How accurate is the dispensing position?The benchtop dispensing robot provides a repeatable accuracy of ±0.03mm.
-
Is programming complicated?No, it supports simple teaching pendant programming—ideal even for beginners.
-
What industries use this dispensing robot?The benchtop glue dispensing robot is commonly used in electronics, LED, PCB, automotive, and semiconductor industries.
-
Does the system support 3D path dispensing?Yes, the 4-axis configuration allows precise 3D dispensing.
-
How do you maintain the machine?Regularly clean the dispensing needle and ensure glue pressure and air supply are stable.
-
Can the machine integrate with an automated production line?Yes, it can be customized for online or floor-standing integration.
