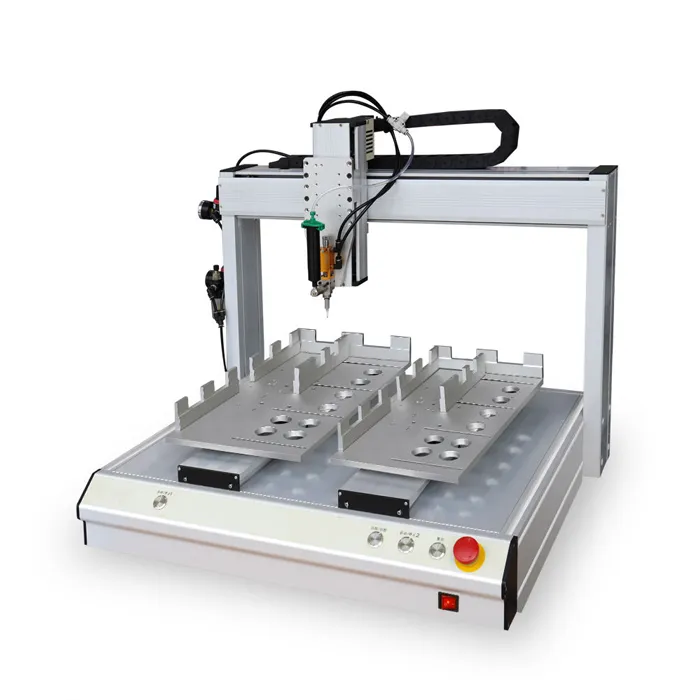

Automatic Desktop 3 Axis UV Glue Dispenser with Double Station

Automatic Desktop 3 Axis UV Glue Dispenser with Double Station is designed for precise, high-efficiency dispensing in electronics, semiconductors, PCB assembly, and LED industries. Equipped with dual stations, it allows continuous operation without stopping, improving productivity while maintaining high accuracy.

Features

Dual Working Stations: Two independent stations allow simultaneous operations—reducing idle time and doubling productivity.
3-Axis Motion Control: High-precision stepper/servo motors ensure accurate positioning and smooth dispensing paths on X, Y, and Z axes.
UV Curing System: Integrated UV lamp enables instant curing of UV adhesives, improving production speed and bond quality.

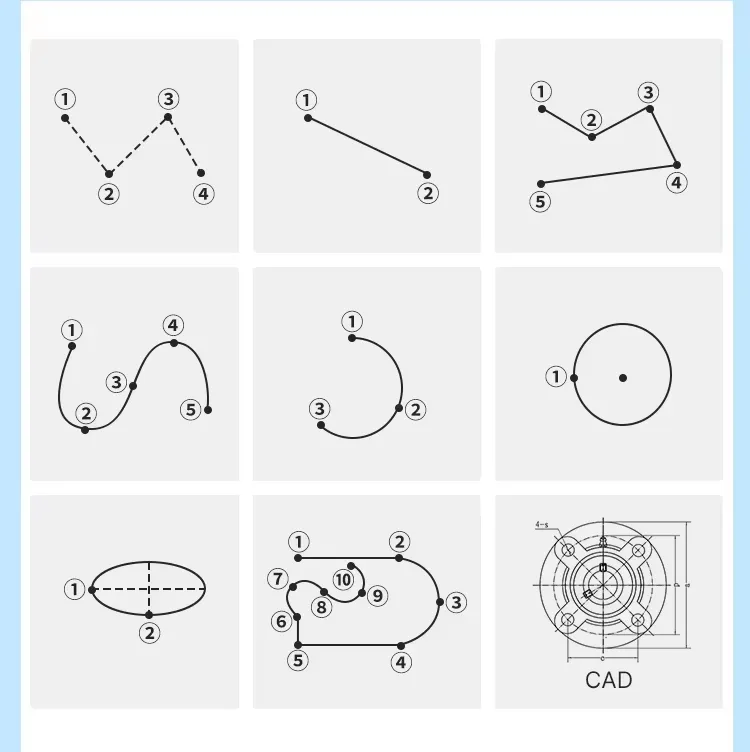

User-Friendly Programming: Supports teaching pendant and PC programming; easy to edit dots, lines, arcs, and curves.
High Repeatability: Repeat accuracy up to ±0.02 mm ensures consistent glue quantity and placement.
Flexible Compatibility: Suitable for epoxy, UV glue, silicone, PU, and other adhesives.
Modular Construction: Easy maintenance and quick replacement of components.
Optional Vision System: CCD camera for auto positioning and inspection.
Compact Desktop Design: Space-saving, suitable for laboratories or production lines.

GET A QUOTE

Description

★ The only PC-E BASE control system capable of 3D arc interpolation
The carefully developed control card makes this glue dispensing machine a truly PTP and CP three-axis arc patching equipment, allowing you to use it with confidence for any non-planar 3D glue dispensing path.

★ Single machine operation and easy installation
It can operate independently without the need for an external computer. Not only is the installation convenient, the operation and setting are also simple.

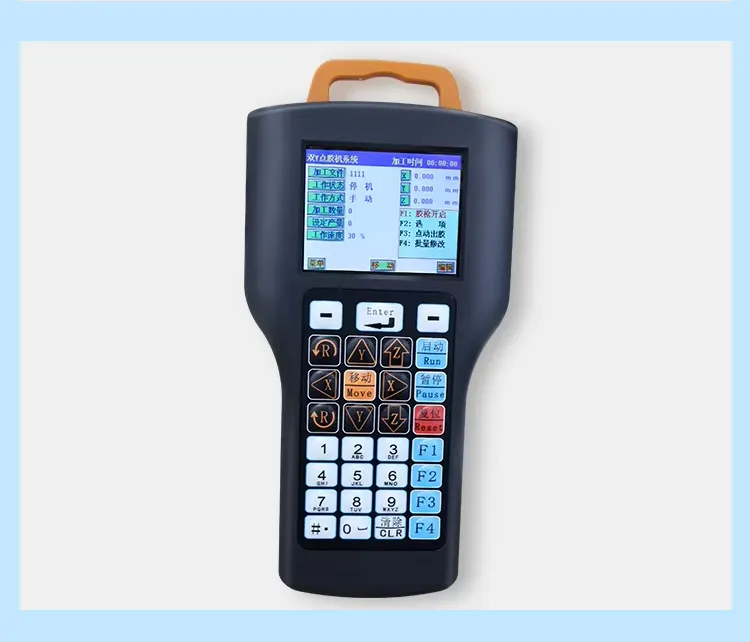

The 3 Axis Glue Dispenser equipped with a graphical button design, the teaching box allows you to easily set any dispensing path with just one click. More can easily complete a variety of path matrix replication, offset modification, correction point setting, and program transmission between each machine and other super functions.

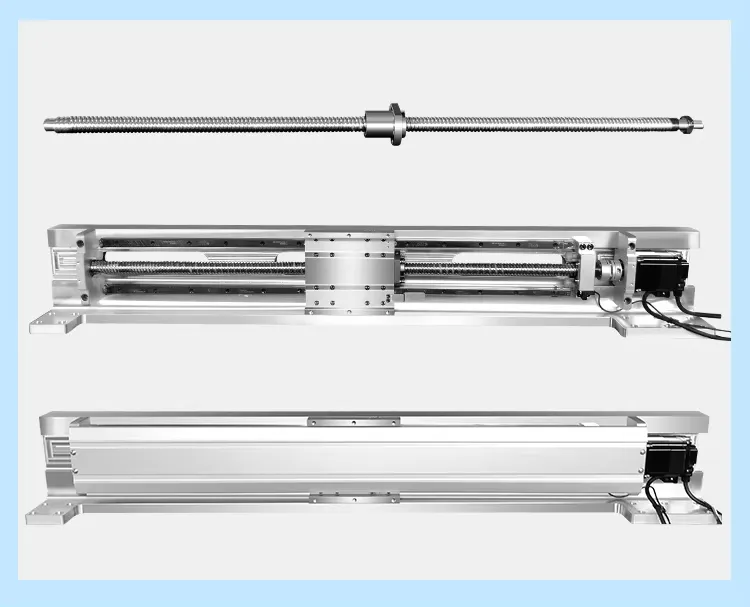

★ Fuji and Panasonic motors, HIWIN guiderails and TBI screws are chosen for the modules.
Modules as a whole are formed by aluminum casting.

★ Suitable for various needs in the dispensing industry
Common glues such as UV glue, silicone, EPOXY, red glue, silver glue, A-B glue, COB black glue, conductive glue, heat dissipation aluminum paste, instant glue, etc. can all be used on this 3 Axis Glue Dispenser equipments.

★ Semiconductor packaging
★ PCB electronic parts fixation and protection
★ LCD glass plate packaging
★ Mobile phone board glue dispensing or button glue dispensing
★ Speaker dispensing
★ Glue sealing of battery box
★ Coating of automotive parts
★ Coating of hardware parts
★ Quantitative gas/liquid filling coating

All technological processes can be assembled according to customer product
Travel (mm)	X-axis:500 Y1-axis:450 Y2-axis:450 Z-axis:80
Machine body weight	80 KG
Scope of work	Double Y platform 600×400mm workspace
Drive method	Stepper motor
Speed	X-axis, Y-axis: 500mm/sec
Bearing weight	X-axis 10kg, Z-axis 10kg
Controller	Built-in three-axis controller
Interpolation function	3D straight line and arc interpolation function
Installation	No corrosive gases, volatile gases, or acidic oil
Power supply	Single-phase AC220V ±10% 50/60HZ
Maximum speed	X-axis running: MAX 400mm/sec Y-axis running: MAX 400mm/sec
Repetitive accuracy	±0.025 mm/Axis
Motion control card	With 232 interface
Maximum load	Y-axis: 3kg Z-axis: 1.5kg
Movement speed	X&Y/Z: 0.1~800/350 (mm/sec)
Decomposition capacity	0.01 mm/Axis
Display method	Handheld controller
Transmission mode	Timing belt
I/O signal	16 Inputs / 16 Outputs
Working environment temperature	5–40°C
Working environment humidity	20–90% no condensation
