Online 3 Stage Automatic Vacuum Potting System for Electronics

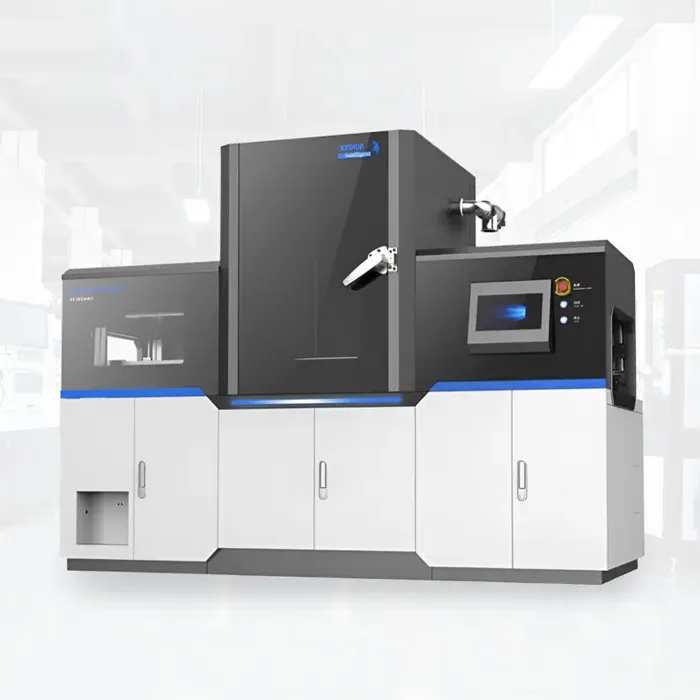

Online 3 Stage Automatic Vacuum Potting System for Electronics XH-DSR4401
The Online 3-Stage Automatic Vacuum Potting System ensures complete and precise encapsulation by allowing the glue to fully permeate every corner of your product. Featuring a synchronized three-stage operation, this system eliminates the need for repeated vacuuming and vacuum release, significantly improving efficiency. Designed for high production capacity, it streamlines the potting process while maintaining consistent, void-free results.
Key Features:
- Vacuum Potting – Ensures complete glue infiltration for void-free encapsulation.
- Three-Stage Synchronous Operation – No repeated vacuumizing or vacuum release required.
- High Production Capacity – Supports continuous, automated potting for large-scale manufacturing.
| Models | XH-DSR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Mixing device | Double layer mixing / single layer mixing (optional) |
| Mixed mode | Dynamic mixing / static mixing (optional) |
| Operating system | PLC + touch screen |
| Operation mode | Start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be) |
| Glue supply system | Gear pump, screw pump, plunger pump (optional) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Operating humidity | 20-90% no condensation |
| Input power | AC380V 50-60Hz |
| Overall dimension | W2100*L900*H1650mm (for reference only, subject to actual product) |
| Weight | Around 2000kg |

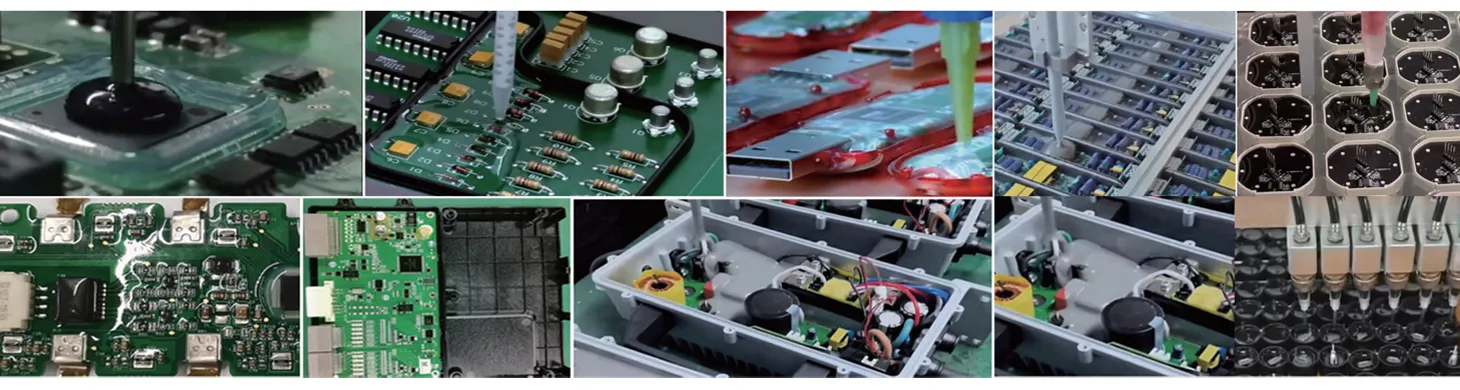

Applications
The vacuum potting system is widely used in electronics and PCB assembly, LED lighting, motors and transformers, battery packs and energy storage devices, automotive electronics, as well as industrial and communication equipment.
This glue potting machine is especially suitable for applications requiring void-free, bubble-free potting, consistent material distribution, and high-volume automated production.
