4-Axis Automatic Solder Paste Dispenser Machine for SMT/SMD

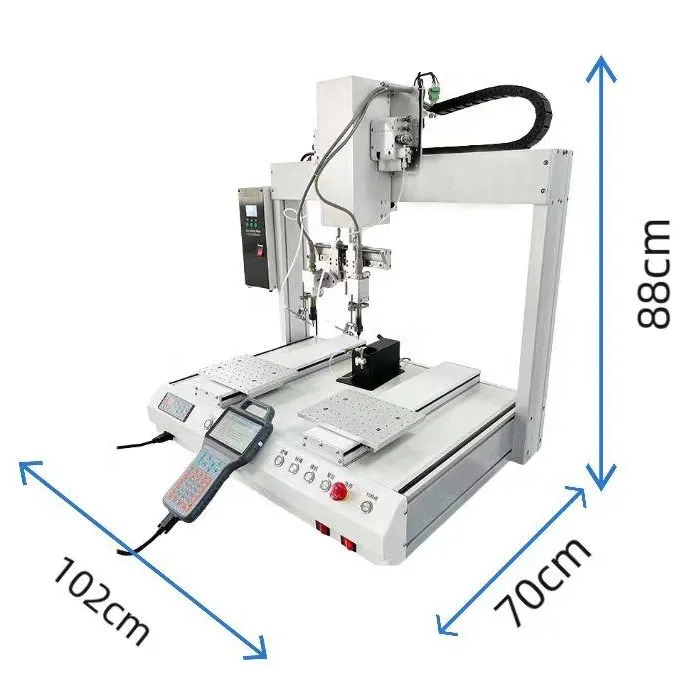

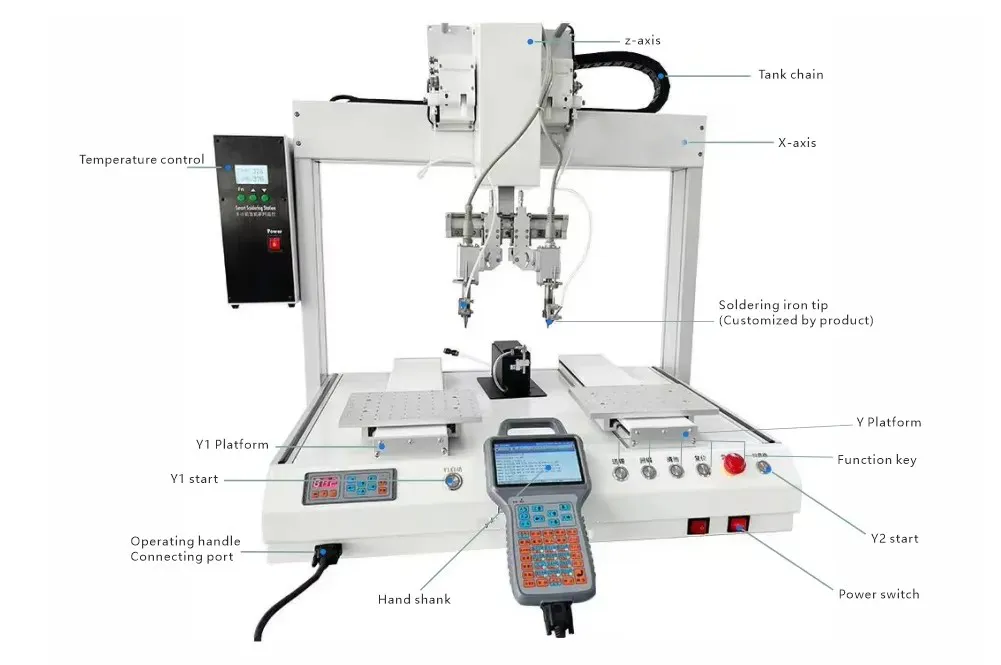

Desktop Double Head 4-Axis Automatic Solder Paste Dispenser Machine for SMT/SMD
The desktop automatic solder paste dispenser machine is a high-precision dispensing solution designed for SMT and SMD electronic assembly. With dual heads and dual working platforms, it enables simultaneous multi-point dispensing, significantly improving production efficiency and reducing labor costs. The advanced 4-axis motion control system ensures accurate positioning and stable dispensing performance, making it ideal for high-volume and high-quality PCB solder paste applications.
Key Features:
Advanced Temperature Control: Precision controller ensures rapid temperature compensation for consistent soldering quality.Stable temperatures (0-500°C, ±2°C error) for reliable soldering.
User-Friendly Programming: Intuitive LCD teaching box simplifies setup and operation.
Precise Tin Feeding: High-precision mechanism with tin breaking function prevents blockages.
Versatile Soldering Options: Supports spot and drag welding, with optional rotary soldering.
Applications:
SMT/SMD assembly lines
PCB solder paste dispensing
LED circuit board production
Electronic component bonding and fixing
Mobile phone, communication, and consumer electronics manufacturing
Key Features:
Advanced Temperature Control: Precision controller ensures rapid temperature compensation for consistent soldering quality.Stable temperatures (0-500°C, ±2°C error) for reliable soldering.
User-Friendly Programming: Intuitive LCD teaching box simplifies setup and operation.
Precise Tin Feeding: High-precision mechanism with tin breaking function prevents blockages.
Versatile Soldering Options: Supports spot and drag welding, with optional rotary soldering.
Applications:
SMT/SMD assembly lines
PCB solder paste dispensing
LED circuit board production
Electronic component bonding and fixing
Mobile phone, communication, and consumer electronics manufacturing
| Model | XH-AS5030 | XH-SA5040 | XH-AS5050 |
|---|---|---|---|
| Processing Range | The rotation axis R, rotate 0~360° | The rotation axis R, rotate 0~360° | The rotation axis R, rotate 0~360° |
| Max Loading | Y axis: 10kg, Z axis: 4kg | ||
| XY/Z Axis Moving Speed (mm/sec) | XY: ≤500, Z: ≤300 | ||
| Repeatability Accuracy | XYZ axis: ±0.02mm, R axis: ±0.05° | ||
| Screen Mode | Liquid crystal display | ||
| Programming Mode | Teaching screen | ||
| Dive Mode | Stepping motor + straight guide / servo motor + ball screw (optional) | ||
| Temperature Control System | 1 high frequency intelligent constant temperature welding table, welding table with automatic temperature compensation, abnormal temperature alarm function | ||
| Automatic Tin Feeder | 1 unit | ||
| Cleaning Cylinder | 1 unit | ||
| Temperature Setting Range | 0–500°C | ||
| Cleaning Method | Air blowing cleaning | ||
| Applicable Wire Diameter | φ0.3–1.6mm | ||
| Input Power | AC220V (internal switch conversion) | ||
| Operating Temperature | 5–40°C | ||
| Operating Humidity | 20–90% | ||
| Equipment Size (W*L*H) (mm) | 485*545*750 | 580*630*750 | 660*700*650 |
| Weight (kg) | around 80kg | around 95kg | around 110kg |
